The MA-R series: Breather dryers prevent moisture damage in barrels & IBC filled with isocyanates, polyols, DOT4, SKYDROL, hygroscopic solvents or oils.
No corrosion inside your barrel
No quality degradation of the contained substances

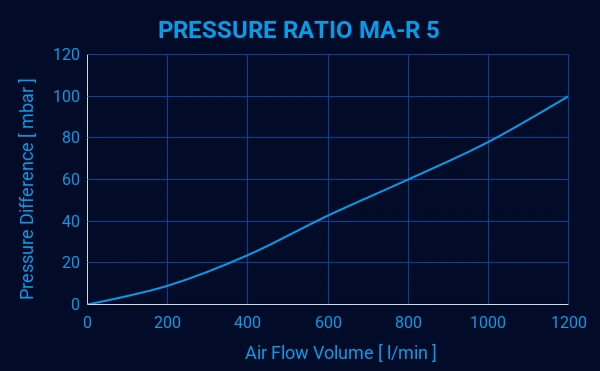

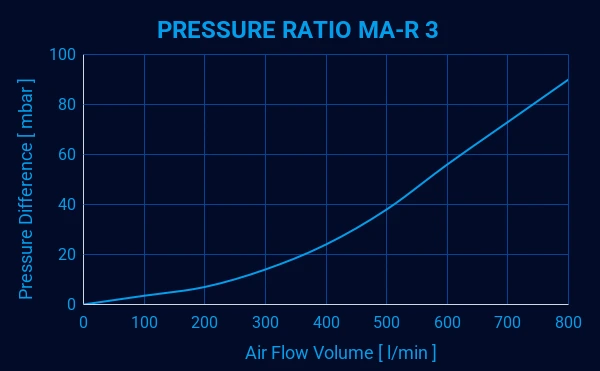

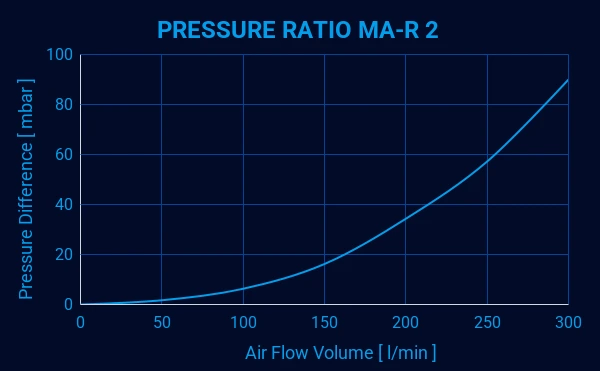

Minimal pressure build-up, even with high flow rates
Suitable for use in harsh environments & explosion protection zones according to ATEX 2014
Refillable
Sustainable multiple-use adsorber.
ATEX conform
Suitable for explosion protection zones.
Offshore suitable
Suitable for use in salty air.
REACH compliant
Safe and harmless product.
RoHS compliant
Safe and harmless product.
IP protection class
IP 63
UV resistance
Very high
Operating temperature
-40°C to +80°C
Material information
Polyamide(PA), polycarbonate (PC), polyvinylchloride (PVC), FKM, GIEBEL Xdry®, activated carbon
Suitable substances
Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite/...adhesives, resins, amines, PU metal catalysts, flame retardants, diethanolamine, silicone
Adsorber components and their tasks.
Metallic housing (A): Protects the inner workings of the adsorber. The refillable aluminium housing is suitable for harsh environments, explosion protection zones and offshore use and is highly UV-resistant.
Activated carbon disk (B): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.
3µm paper filter (C): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.
GIEBEL Xdry® (D): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.
Slosh protection (E): Prevents oil splashes and small oil droplets from escaping. They condense on the slosh protection and drip back into the system.
Foam filter disk (F): Filters coarse dust and dirt particles from the supply air.
Opening (G): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization.
Thread (H): Connects system and adsorber. Various thread types are available.
ADSORPTION PROCESS:
If the oil level in the system drops, air flows in to equalize pressure. This air enters the adsorber via the openings (G) and flows through a coarse filter (F), which separates larger dirt and dust particles. The GIEBEL Xdry® filling (D) then separates moisture up to 2% RH (average 10% RH). A 3μm filter (C) removes even the finest dirt and dust particles from the supply air.
Dry and clean air enters the system.
DESORPTION PROCESS:
If the oil level rises, air is pressed out of the system. This air contains oil particles and aerosols. Larger oil particles condense on the oil demister (E) and drip back into the system. Finer oil particles and aerosols are separated by the activated carbon (B). Some of the previously adsorbed moisture is removed from the desiccant as the air flows out, ensuring cyclical self-regeneration.
Clean air escapes the system.
Technical data according to size.
 |
 |
 |
|
|---|---|---|---|
| ADSORBER | MA-R 1L | MA-R 2L | MA-R 3M |
| TOTAL WEIGHT (KG) |
0.54 | 1.7 | 2.15 |
| GIEBEL XDRY® (KG) |
0.17 | 0.55 | 0.85 |
| COLOR-CHANGE CAPACITY (ML) |
60 | 193 | 298 |
| HEIGHT (MM) |
151 | 232 | 240 |
| DIAMETER (MM) |
60/64 | 90/120 | 110/140 |
| CONNECTION | BSP, NPT (Metric with adapter) | BSP, NPT (Metric & Slipfit with adapter) | BSP, NPT (Metric & Slipfit with adapter) |
| VALVES (IN-OUT) |
0-0 | 0-0 | 0-0 |
|
|
|
|
|---|---|---|---|
