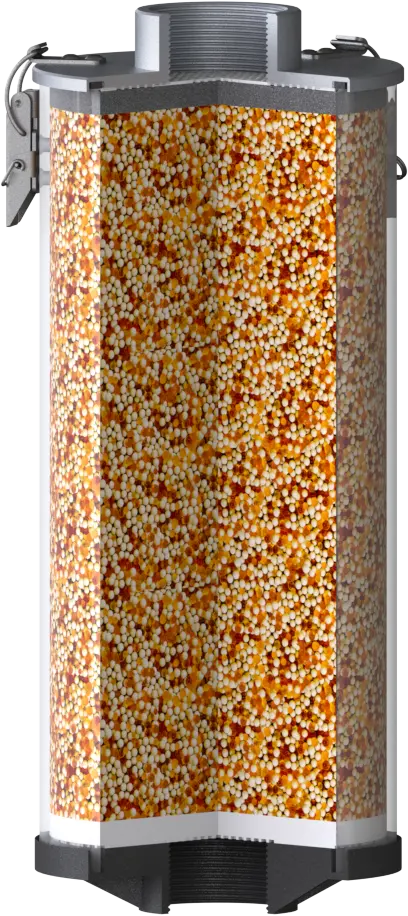

The VL-R series: Inline filters to dry & filter pipeline air flows of storage tanks.
No corrosion inside your storage tank
No quality degradation of contained substances
Technical data according to size.
 |
 |
 |
 |
|
|---|---|---|---|---|
| ADSORBER | VL-R 2L | VL-R 3L | VL-R 5L | VL-R 5XL |
| TOTAL WEIGHT (LBS) |
2.663 | 6.027 | 12.829 | 16.165 |
| GIEBEL XDRY® (LBS) |
1.433 | 3.748 | 8.157 | 11.023 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
7.711 | 20.121 | 43.778 | 59.174 |
| HEIGHT (IN) |
8.465 | 13.031 | 14.921 | 18.858 |
| DIAMETER (IN) |
3" - 4" | 4" - 5" | 5" - 7" | 5" - 7" |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
|
|
|
|
|
|---|---|---|---|---|
| ADSORBER | VL-R 2L | VL-R 3L | VL-R 5L | VL-R 5XL |
| TOTAL WEIGHT (LBS) |
2.663 | 6.027 | 12.829 | 16.165 |
| GIEBEL XDRY® (LBS) |
1.433 | 3.748 | 8.157 | 11.023 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
7.711 | 20.121 | 43.778 | 59.174 |
| HEIGHT (IN) |
8.465 | 13.031 | 14.921 | 18.858 |
| DIAMETER (IN) |
3" - 4" | 4" - 5" | 5" - 7" | 5" - 7" |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
Spare parts kits.
