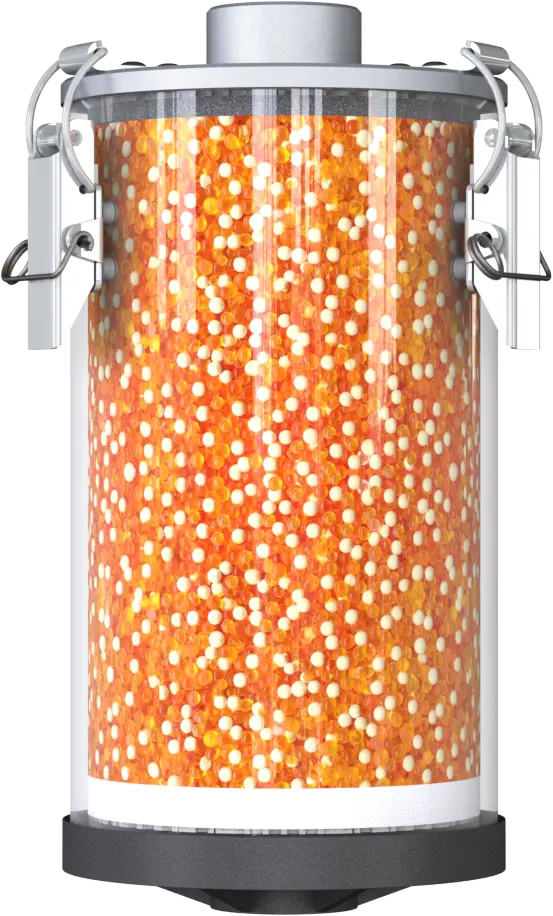

The VL-R series: Inline filters to dry & filter pipeline air flows of storage tanks.
No corrosion inside your storage tank
No quality degradation of contained substances

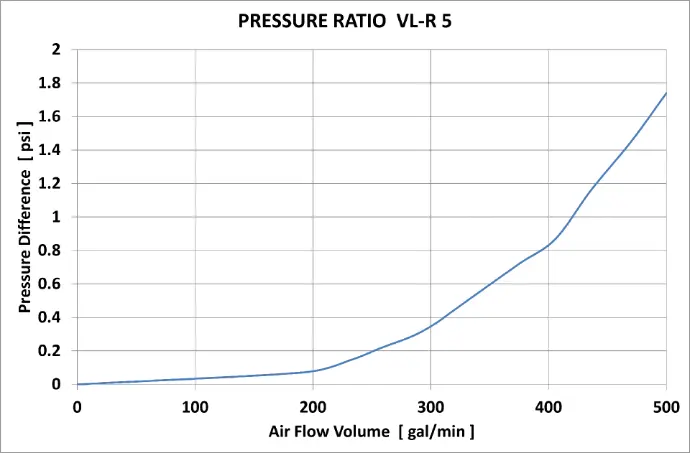

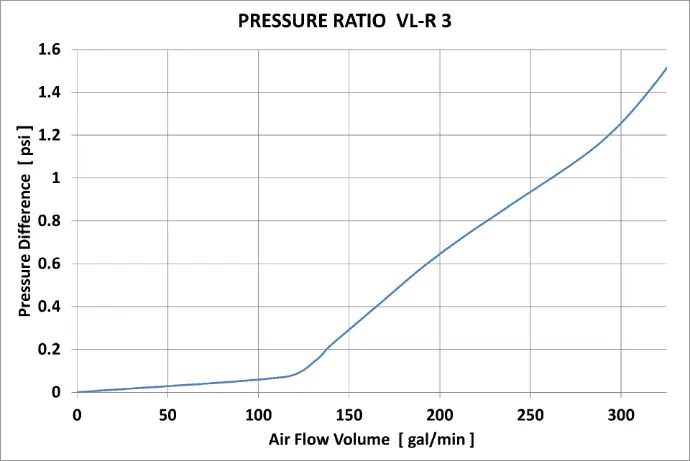

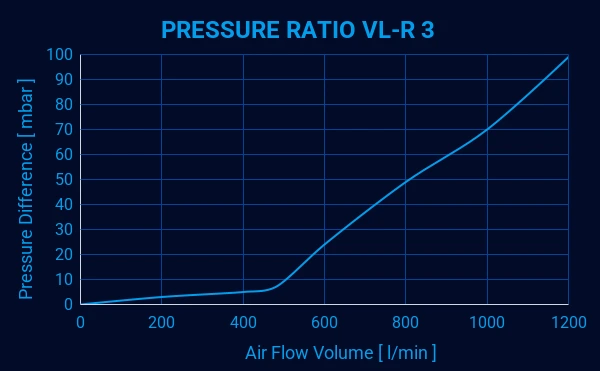

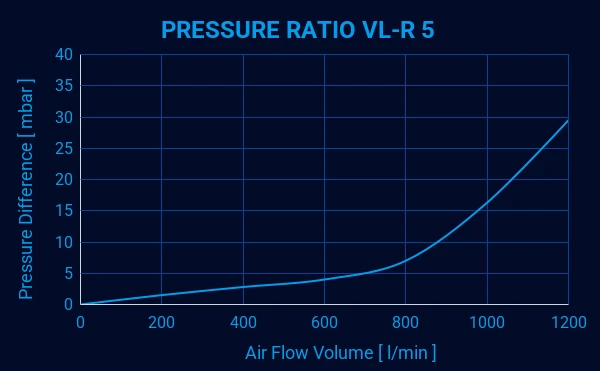

Minimal pressure build-up, even with high flow rates
Designed for DN50 / 2" pipes
Suitable for indoor, outdoor & offshore use
Refillable
Sustainable multiple-use adsorber.
ATEX
Not suitable for explosion protection zones.
Offshore suitable
Suitable for use in salty air.
REACH compliant
Safe and harmless product.
RoHS compliant
Safe and harmless product.
IP protection class
IP 68
UV resistance
High
Operating temperature
-40°C to +80°C /125°C
Corosivity class
C5
Material information
Aluminum, polyamide (PA), polycarbonate(PC), GIEBEL Xdry®, activated carbon
Suitable substances
Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite
Adsorber components and their tasks.
Plastic housing (A): Protects the inner workings of the adsorber. The refillable plastic housing is durable and UV-resistant.
Filter grid (B & F): Filters coarse dust and dirt particles from the supply air.
Activated carbon disk (C): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.
GIEBEL Xdry® (D): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.
2µm fleece filter (E): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.
Thread (G): Connects system and adsorber.
Technical data according to size.
 |
 |
 |
 |
|
|---|---|---|---|---|
| ADSORBER | VL-R 2L | VL-R 3L | VL-R 5L | VL-R 5XL |
| TOTAL WEIGHT (KG) |
1.208 | 2.734 | 5.818 | 7.333 |
| GIEBEL XDRY® (KG) |
0.65 | 1.7 | 3.7 | 5.0 |
| COLOR-CHANGE CAPACITY (ML) |
228 | 595 | 1295 | 1750 |
| HEIGHT (MM) |
215 | 331 | 379 | 479 |
| DIAMETER (MM) |
90/120 | 110/140 | 150/180 | 150/180 |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
|
|
|
|
|
|---|---|---|---|---|
