Wall mounts - for mounting adsorbers next to the system.
Simple screw-on / hook-in solution.
No modifications to the system required
Perfect for adsorber installation on hydraulics, gears, barrels, IBCs & storage tanks
BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA FAQ DOWNLOADS
Assembly made easy.
It is not always possible to install an adsorber directly on the system. If space is very limited, wall mounts can help. They are hung on a grid near the system or screwed to walls and connected to the system via a hose.
How it works.
Wall mounts are screwed to walls next to the system or hooked into fences and connected to the system via a hose. They have a G1“f or G3/4”f thread into which the adsorber can be screwed. OSL wall mounts also feature a clamp to mechanically secure larger adsorbers.
Installation of a wall mount.

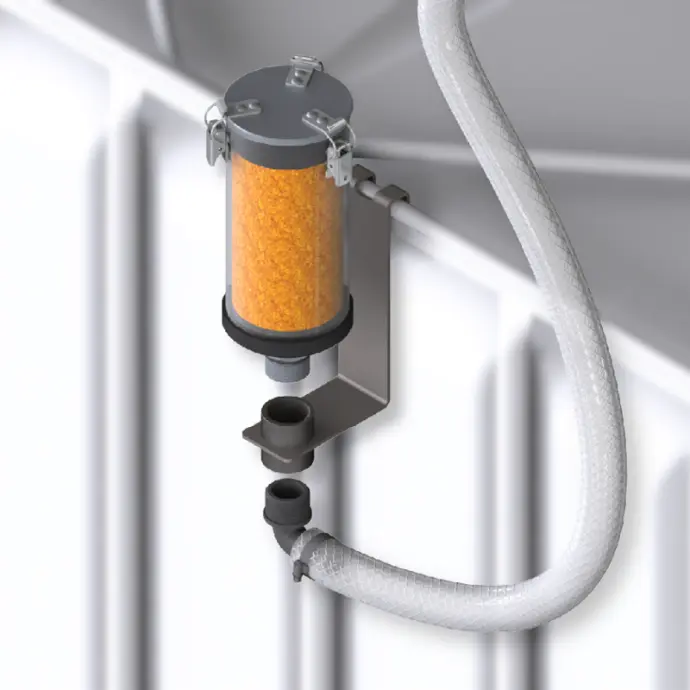

Wall mount HK
Step 1: Wall Mount HK
Hook the wall mount into a grid or fence.
Step 2: Adsorber + Hose
Screw the adsorber into the thread of the wall mount at the top and connect the hose at the bottom.
Step 3: Hose Nozzle
Screw the hose nozzle into the thread of the IBC cover.
Step 4: Camlock coupling
Insert the hose and close the camlock coupling.

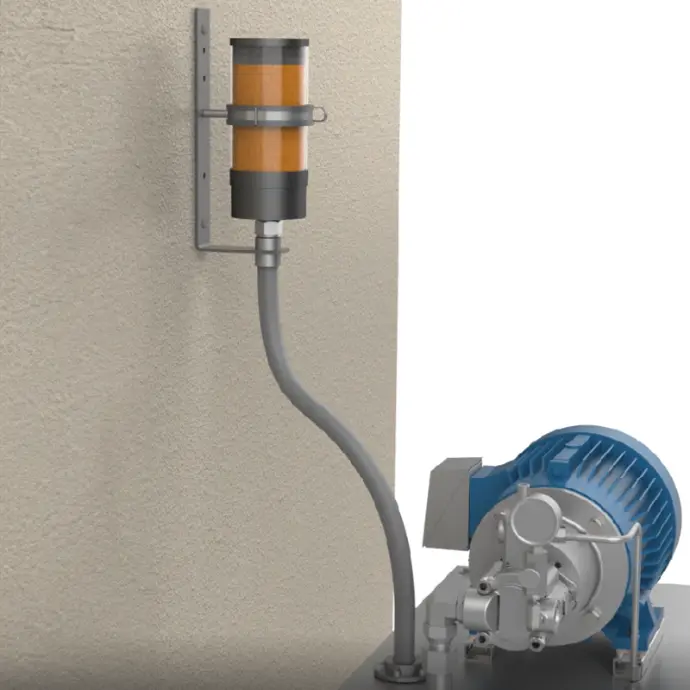

Wall mount OSL
Step 1: Wall mount OSL
Screw the wall bracket to a wall near your system.
Step 2: Adsorber
Screw the adsorber into the thread of the wall mount at the top and connect the hose at the bottom. Connect the second end of the hose to your system.

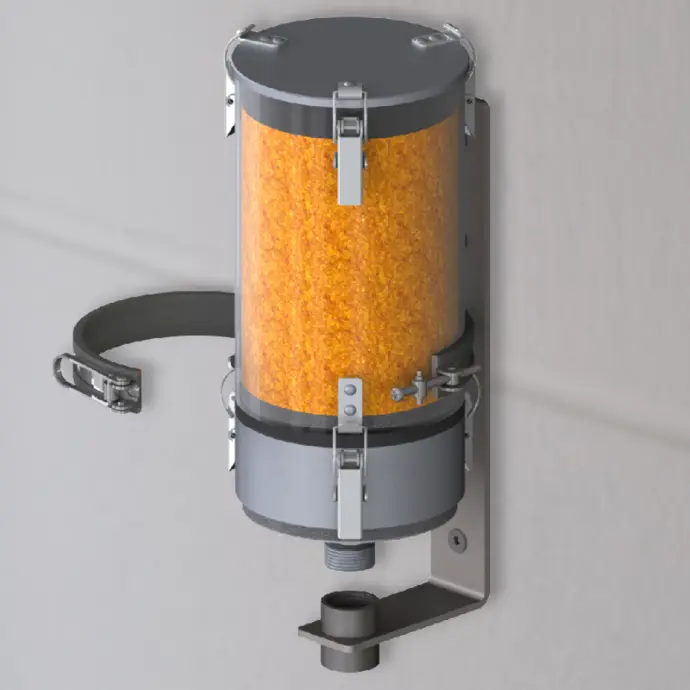

Wall mount SL
Step 1: Wall mount SL
Step 2: Adsorber
Screw the adsorber into the thread of the wall mount at the top and close the clamp. Connect the hose at the bottom.
Step 3: Hose
Connect the second end of the hose to your system.
