Flange adapters - for mounting adsorbers on existing bolt circles.
Simple screw-on solution
No modifications to the system required
Perfect for adsorber installation on hydraulics
BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA FAQ DOWNLOADS
Assembly made easy.
Hydraulic power units and mobile hydraulics usually already have pre-drilled bolt circles on the hydraulic tank that are perfect for installing an adsorber. This is where flange adapters come into play—they connect system and adsorber.
How it works.
Flange adapters fit perfectly on standard bolt circles with 41, 73, and 75 mm and have a G1"f thread on the top into which an adsorber can be screwed.
Installation of a flange adapter.
Step 1: Flange adapter
Screw the flange adapter onto the existing bolt circle on your hydraulic tank. A gasket and screws are included.
Step 2: Adsorber
Screw on the adsorber. Please make sure to order your adsorber with a matching thread (G1“m or N1”m).
Technical data.
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|

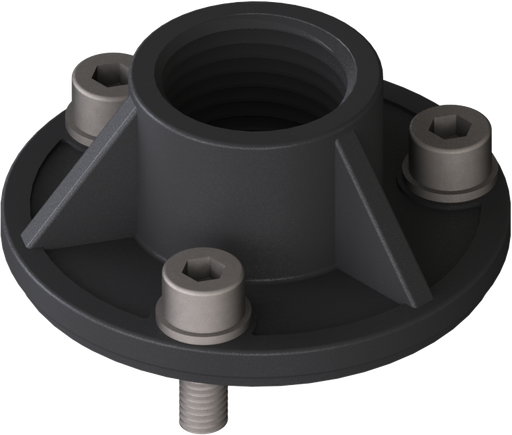

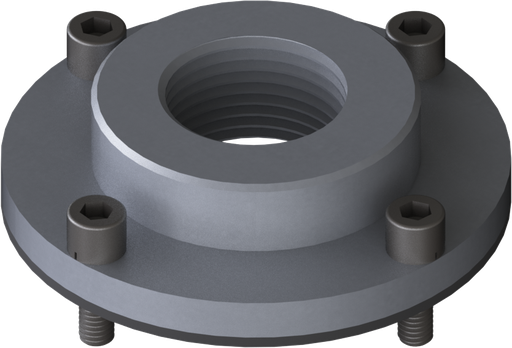

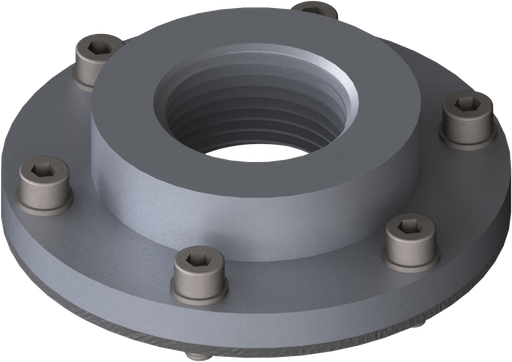

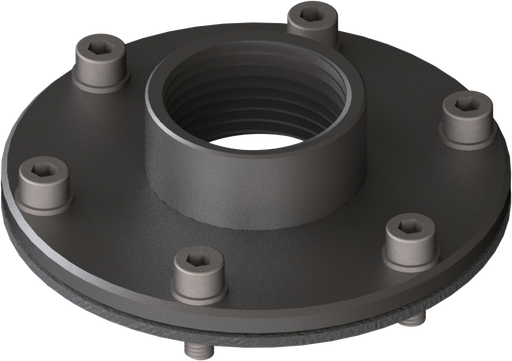

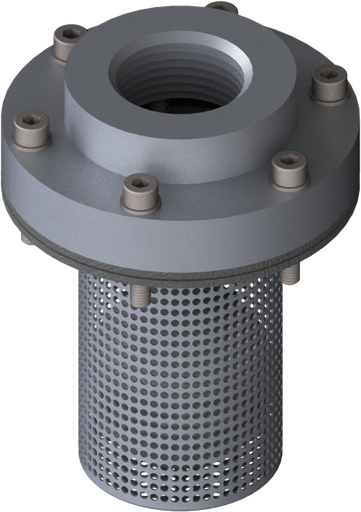

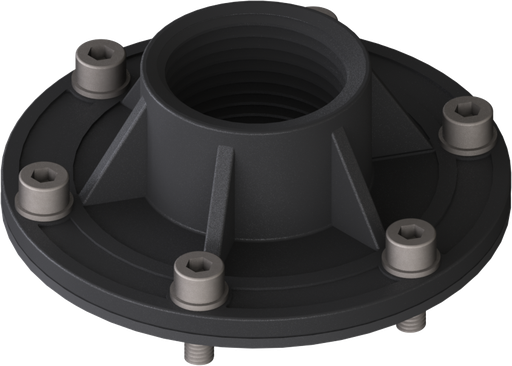

| FLANGE ADAPTER | LK41 PA | LK73 PA | LK73 AL FKM | LK73 AL EPDM | LK73 SS | LK 73 Anti-Splash | LK75 FKM AL |
| WEIGHT (KG) |
0.03 | 0.06 | 0.18 | 0.18 | 0.26 | 0.32 | 0.18 |
| HEIGHT (MM) |
22 | 27 | 22 | 22 | 22 | 33 (+78 inside) | 22 |
| DIAMETER (MM) |
52 | 85 | 85 | 85 | 85 | 85 | 85 |
| SCREWS | 3x M5 | 6x M5 | 6x M5 | 6x M5 | 6x M5 | 6x M5 | 4x M6 |
| CONNECTION | G1/2"f, N1/2"f | G1"f, N1"f | G1"f | G1"f | G1"f | G1"f | G1"f |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| FLANGE ADAPTER | LK41 PA | LK73 PA | LK73 AL FKM | LK73 AL EPDM | LK73 SS | LK 73 Anti-Splash | LK75 FKM AL |
| WEIGHT (KG) |
0.03 | 0.06 | 0.18 | 0.18 | 0.26 | 0.32 | 0.18 |
| HEIGHT (MM) |
22 | 27 | 22 | 22 | 22 | 33 (+78 inside) | 22 |
| DIAMETER (MM) |
52 | 85 | 85 | 85 | 85 | 85 | 85 |
| SCREWS | 3x M5 | 6x M5 | 6x M5 | 6x M5 | 6x M5 | 6x M5 | 4x M6 |
| CONNECTION | G1/2"f, N1/2"f | G1"f, N1"f | G1"f | G1"f | G1"f | G1"f | G1"f |
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
