The ME-RV series: Breather dryers to prevent moisture damage in hydraulics & gears that are operated in the chemical industry or exposed to salt air.

No corrosion inside your tank
No quality degradation of operating oils

Suitable for use in explosion protection zones according to ATEX 2014

SHOP ONLINE

Refillable

Sustainable multiple-use adsorber

ATEX conform

Suitable for explosion protection zones

Offshore suitable

Suitable for use in salty air

REACH compliant

Safe and harmless product

RoHS compliant

Safe and harmless product

IP protection class

IP 66

UV resistance

Very high

Operating temperature

-40°C to +80°C / 160°C

Corrosivity class

Material information

Stainless steel, polycarbonate (PC), polyoxymethylene (POM), FKM, EPDM, GIEBEL Xdry®, activated carbon

Suitable substances

Hydraulic oil, gear oil, biological oil, vegetable oil, transformer oil, insulating oil, AdBlue (Urea), diesel fuel, isocyanates, polyols, anhydrite, flammable liquids(fuels, solventsetc.), sulphuric acid, benzenesulphonic acid, dichloromethane, methanol, caustic soda

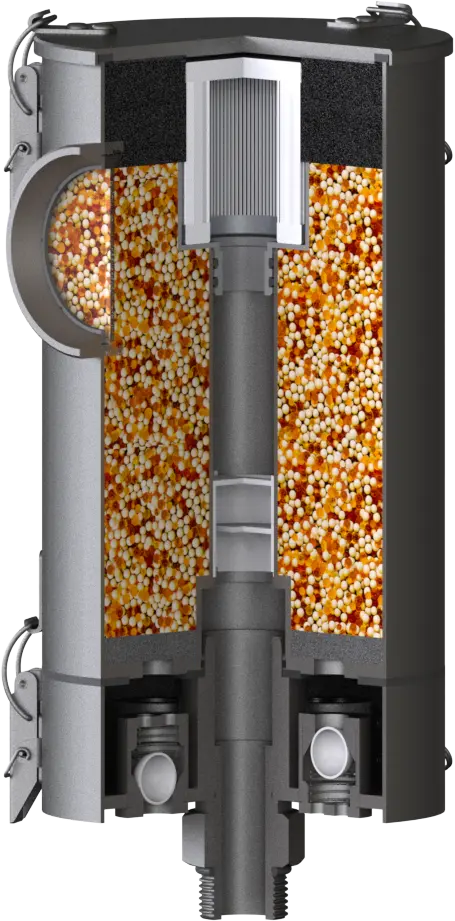

Adsorber components and their tasks.

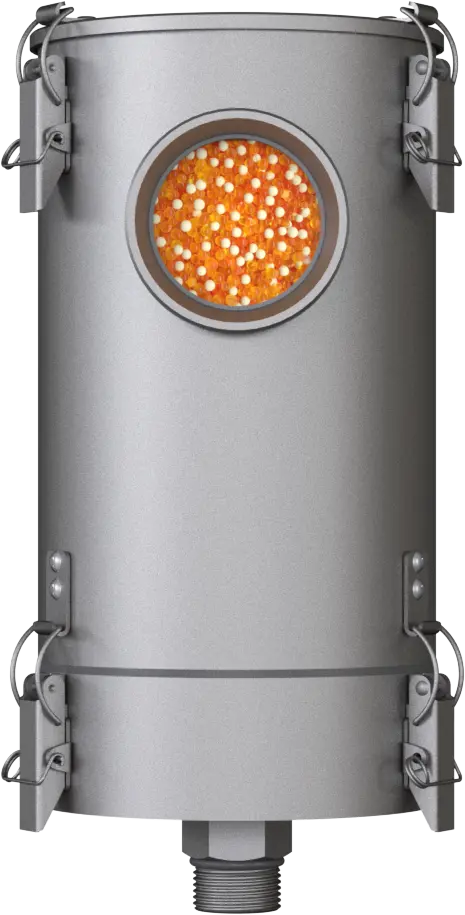

Metallic housing (A): Protects the inner workings of the adsorber. The refillable stainless steel housing is suitable for harsh environments, explosion protection zones and offshore use and is highly UV-resistant.

Activated carbon disk (B): Adsorbs oil particles and aerosols from exhaust air. The activated carbon layer not only protects the desiccant from contact with oil, but also prevents harmful oil mist from escaping the system.

3µm paper filter (C): Filters finest dust and dirt particles from supply air and thus protects the system from getting filthy.

GIEBEL Xdry® (D): Ensures effective drying of the air flowing through and indicates by changing color from orange to green when it is time to replace the adsorber.

Slosh protection (E): Prevents oil splashes and small oil droplets from escaping. They condense on the slosh protection and drip back into the system.

Foam filter disk (F): Filters coarse dust and dirt particles from the supply air.

Valve (G): Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization and at the same time protects the desiccant from unnecessary loading while the system is at a standstill.

Thread (H): Connects system and adsorber. Various thread types are available.

ADSORPTION PROCESS:
If the oil level in the system drops, air flows in to equalize pressure. This air enters the adsorber via the valves (G) and flows through a coarse filter (F), which separates larger dirt and dust particles. The GIEBEL Xdry® filling (D) then separates moisture up to 2% RH (average 10% RH). A 3μm filter (C) removes even the finest dirt and dust particles from the supply air.

Dry and clean air enters the system.

DESORPTION PROCESS:
If the oil level rises, air is pressed out of the system. This air contains oil particles and aerosols. Larger oil particles condense on the oil demister (E) and drip back into the system. Finer oil particles and aerosols are separated by the activated carbon (B). Some of the previously adsorbed moisture is removed from the desiccant as the air flows out, ensuring cyclical self-regeneration.

Clean air escapes the system.

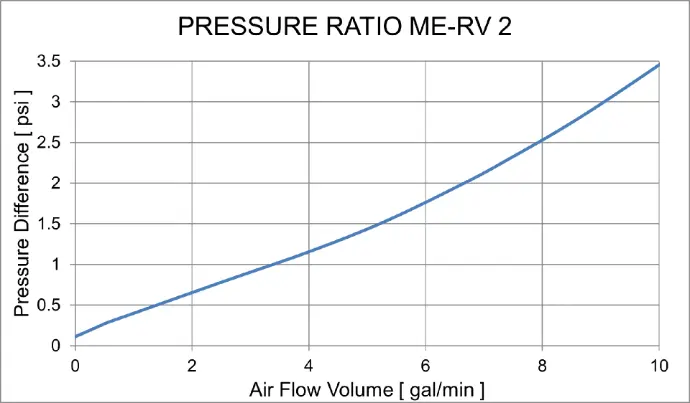

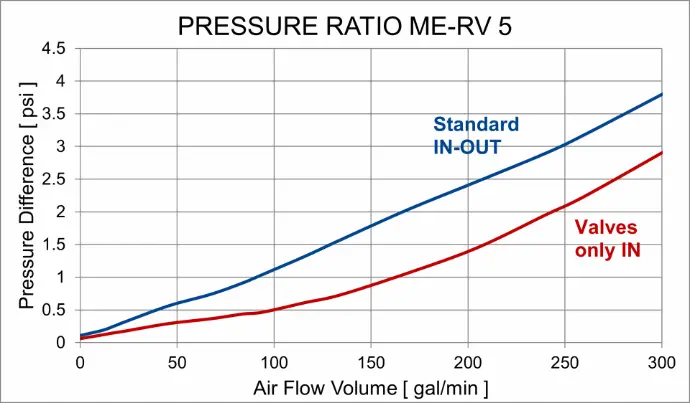

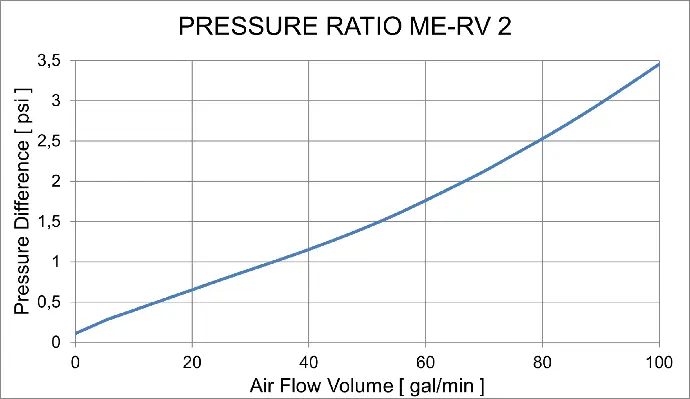

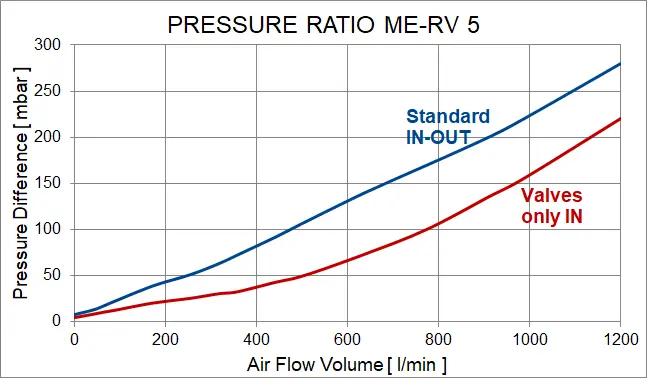

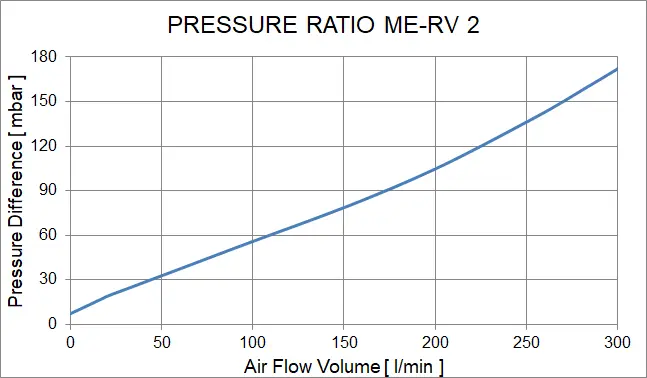

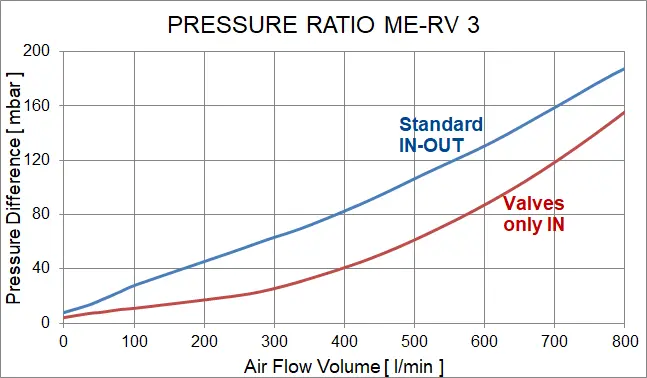

Technical data according to size.


ADSORBER	ME-RV 1L	ME-RV 2L	ME-RV 3M	ME-RV 3L	ME-RV 5M	ME-RV 5L
TOTAL WEIGHT (LBS)	2.82	7.32	10.32	13.23	18.96	23.59
GIEBEL XDRY® (LBS)	0.33	1.21	1.87	3.09	4.85	7.50
COLOR-CHANGE CAPACITY (FL. OZ)	1.79	6.53	10.08	16.56	26.04	40.23
HEIGHT (IN)	5.945	9.173	11.417	15.394	12.638	16.575
DIAMETER (IN)	2 $\frac{3}{8}$ " - 2 $\frac{1}{2}$ "	3 $\frac{1}{2}$ " - 4 $\frac{3}{4}$ "	4 $\frac{1}{4}$ " - 5 $\frac{1}{2}$ "	4 $\frac{1}{4}$ " - 5 $\frac{1}{2}$ "	5 $\frac{7}{8}$ " - 7 $\frac{1}{16}$ "	5 $\frac{7}{8}$ " - 7 $\frac{1}{16}$ "
CONNECTION	BSP, NPT (Metric with adapter)	BSP, NPT (Metric & Slipfit with adapter)	BSP, NPT (Metric & Slipfit with adapter)	BSP, NPT (Metric & Slipfit with adapter)	BSP, NPT (Metric & Slipfit with adapter)	BSP, NPT (Metric & Slipfit with adapter)
VALVES (IN-OUT)	1-1	1-1	1-1	1-1	2-2	2-2, 4-0
