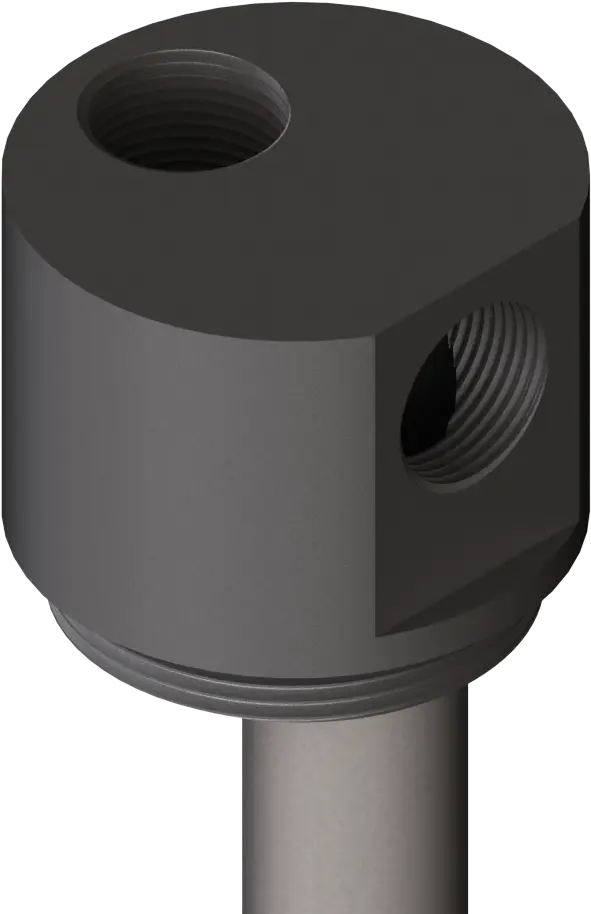

Suction lances - for connecting barrel pumps & bypass filter systems during adsorber operation.
Simple screw-on solution
No modifications to the system required
Perfect for adsorbers mounted on hydraulics, barrels & IBCs
BUY ONLINE HOW IT WORKS INSTALLATION TECHNICAL DATA FAQ DOWNLOADS
Maintenance made easy.
Suction lances enable liquids to be extracted and ensure that the supply air to the system remains dry and clean even during operation of drum pumps and bypass filter systems.
Installation of a suction lance.
Step 1:
Step 2:
Step 1:
Step 2:
Technical data.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| SUCTION LANCES | AL 2x-By G3/4"f - G2"m | AL 1x-By G3/4"f - G2"m | SS 1x-By G3/4"f - G2"m | 1x-By LK73 | 2x-By LK73 |
| TOTAL WEIGHT (KG) |
2.220 | 1.795 | 2.643 | 3.08 | 2.31 |
| HEIGHT (MM) |
53 (+856 inside) | 53 (+856 inside) | 53 (+856 inside) | 92 (+847 inside) | 77 (+847 inside) |
| DIAMETER (MM) |
70 | 70 | 70 | 85 | 85 |
| CONNECTION | 2x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G1"f (for bypass), G1"f (for adsorber), LK73 (for system) | 2x G3/4"f (for bypass), G1"f (for adsorber), LK73 (for system) |
|
|
|
|
|
|
|---|---|---|---|---|---|
| SUCTION LANCES | AL 2x-By G3/4"f - G2"m | AL 1x-By G3/4"f - G2"m | SS 1x-By G3/4"f - G2"m | 1x-By LK73 | 2x-By LK73 |
| TOTAL WEIGHT (KG) |
2.220 | 1.795 | 2.643 | 3.08 | 2.31 |
| HEIGHT (MM) |
53 (+856 inside) | 53 (+856 inside) | 53 (+856 inside) | 92 (+847 inside) | 77 (+847 inside) |
| DIAMETER (MM) |
70 | 70 | 70 | 85 | 85 |
| CONNECTION | 2x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G3/4"f (for bypass), G3/4"f (for adsorber), G2"m (for system) | 1x G1"f (for bypass), G1"f (for adsorber), LK73 (for system) | 2x G3/4"f (for bypass), G1"f (for adsorber), LK73 (for system) |
