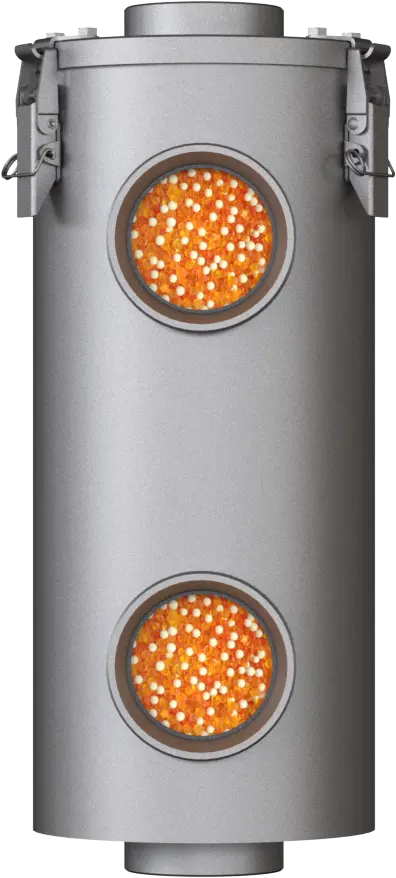

The VE-R series: Inline filters to dry & filter pipeline air flows of storage tanks in harsh environments & ATEX zones.
No corrosion inside your storage tank
No quality degradation of contained substances
Suitable for use in harsh environments and explosion protection zones according to ATEX 2014
Technical data according to size.
 |
 |
 |
 |
|
|---|---|---|---|---|
| ADSORBER | VE-R 2L | VE-R 3L | VE-R 5L | VE-R 5XL |
| TOTAL WEIGHT (LBS) |
5.53 | 10.58 | 21.83 | 26.46 |
| GIEBEL XDRY® (LBS) |
1.76 | 4.19 | 9.04 | 11.90 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
9.47 | 22.49 | 48.54 | 63.91 |
| HEIGHT (MM) |
9.134 | 13.504 | 14.842 | 18.780 |
| DIAMETER (MM) |
3" - 4" | 4" - 5" | 5" - 7" | 5" - 7" |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
|
|
|
|
|
|---|---|---|---|---|
| ADSORBER | VE-R 2L | VE-R 3L | VE-R 5L | VE-R 5XL |
| TOTAL WEIGHT (LBS) |
5.53 | 10.58 | 21.83 | 26.46 |
| GIEBEL XDRY® (LBS) |
1.76 | 4.19 | 9.04 | 11.90 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
9.47 | 22.49 | 48.54 | 63.91 |
| HEIGHT (MM) |
9.134 | 13.504 | 14.842 | 18.780 |
| DIAMETER (MM) |
3" - 4" | 4" - 5" | 5" - 7" | 5" - 7" |
| CONNECTION | BSP G1"f | BSP G1"f | BSP G2"f | BSP G2"f |
Spare parts kits.
