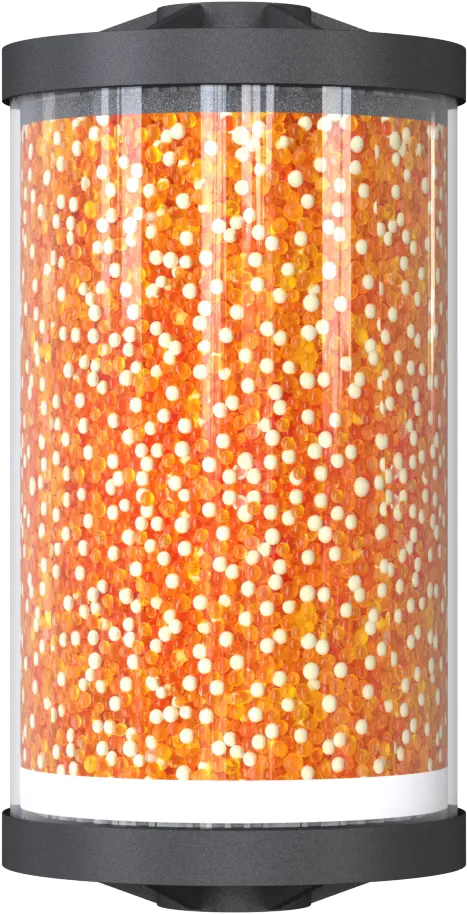

The VL-D series: Inline filters to dry & filter pipeline air flows of storage tanks.
No corrosion inside your storage tank
No quality degradation of contained substances
Technical data according to size.
 |
 |
 |
|
|---|---|---|---|
| ADSORBER | VL-D 1L | VL-D 2L | VL-D 3L |
| TOTAL WEIGHT (LBS) |
0.67 | 2.15 | 5.22 |
| GIEBEL XDRY® (LBS) |
0.40 | 1.43 | 3.75 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
2.13 | 7.71 | 20.12 |
| HEIGHT (IN) |
5.276 | 8.031 | 12.598 |
| DIAMETER (IN) |
2" - 2" | 3" - 3" | 4" - 4" |
| CONNECTION | BSP G1/2"f | BSP G1"f | BSP G1"f |
|
|
|
|
|---|---|---|---|
| ADSORBER | VL-D 1L | VL-D 2L | VL-D 3L |
| TOTAL WEIGHT (LBS) |
0.67 | 2.15 | 5.22 |
| GIEBEL XDRY® (LBS) |
0.40 | 1.43 | 3.75 |
| COLOR-CHANGE CAPACITY (FL.OZ) |
2.13 | 7.71 | 20.12 |
| HEIGHT (IN) |
5.276 | 8.031 | 12.598 |
| DIAMETER (IN) |
2" - 2" | 3" - 3" | 4" - 4" |
| CONNECTION | BSP G1/2"f | BSP G1"f | BSP G1"f |
