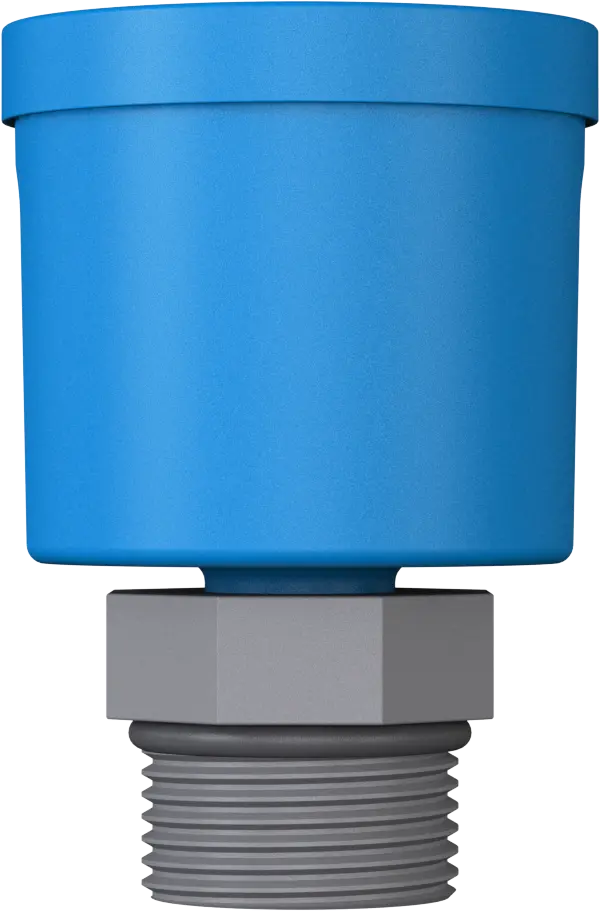

The HS-D series: Waterseparators to protect gears against water droplet ingress while allowing them to breathe.
Alternative to adsorbers when liquid water is a challenge but moisture is not a problem
Protection of gear oil from contamination by water
Suitable for transmissions which are used outdoors or cleaned with water
Long-term use
Durable gear protection against water or oil drops
REACH compliant
Safe and harmless product.
RoHS compliant
Safe and harmless product.
IP protection class
IP 68
UV resistance
High
Operating temperature
-40°C to +80°C
Corrosivity class
CX
Material information
Polyamide(PA), polyvinylchloride(PVC), FKM, ePTFE

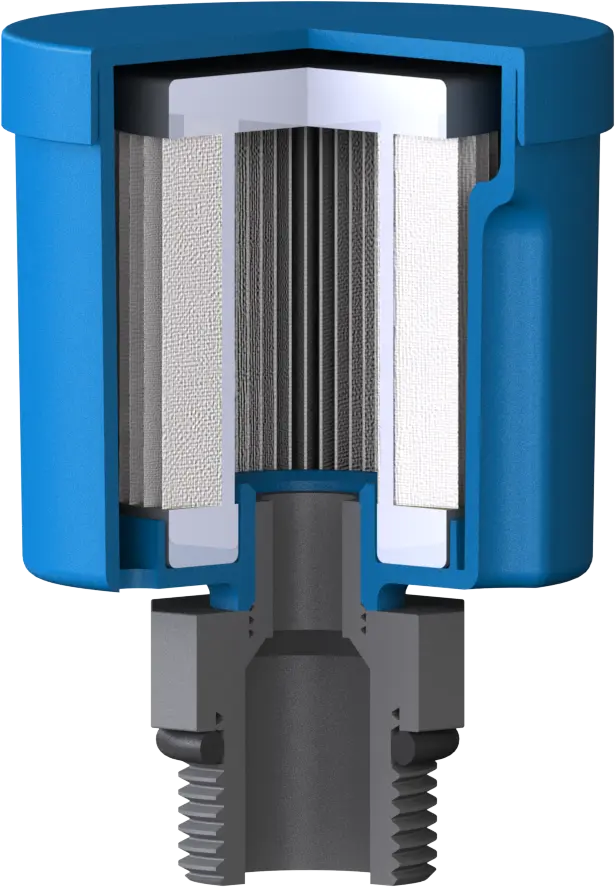

Adsorber components and their tasks.
Plastic housing (A): Protects the inner workings of the adsorber. The refillable PA6 housing is durable and UV-resistant.
ePTFE membrane filter (B): Keeps liquid water out of gears - especially when being cleaned with water or operated outdoors.
Opening (C):
Enables air exchange with the environment when the system draws in or pushes out air for pressure equalization.
Thread (G): Connects system and adsorber.
Technical data according to size.
 |
 |
|
|---|---|---|
| ADSORBER | HS-D S | HS-D M |
| TOTAL WEIGHT (KG) |
0.03 | 0.11 |
| HEIGHT (MM) |
47 | 76 |
| DIAMETER (MM) |
30/33 |
60/63 |
| CONNECTION | BSP, Metric | BSP, Metric |
|
|
|
|---|---|---|
| ADSORBER | HS-D S | HS-D M |
| TOTAL WEIGHT (KG) |
0.03 | 0.11 |
| HEIGHT (MM) |
47 | 76 |
| DIAMETER (MM) |
30/33 |
60/63 |
| CONNECTION | BSP, Metric | BSP, Metric |

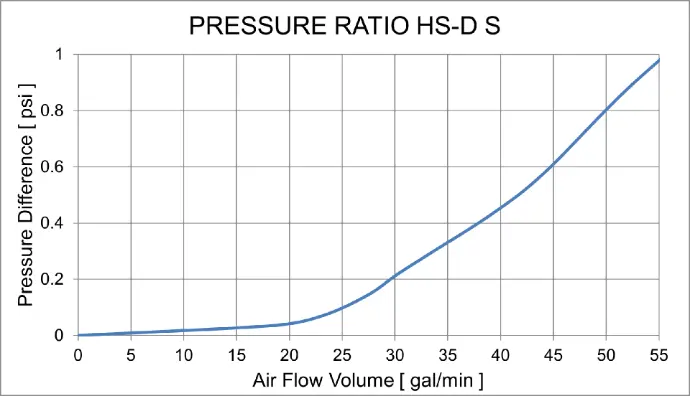

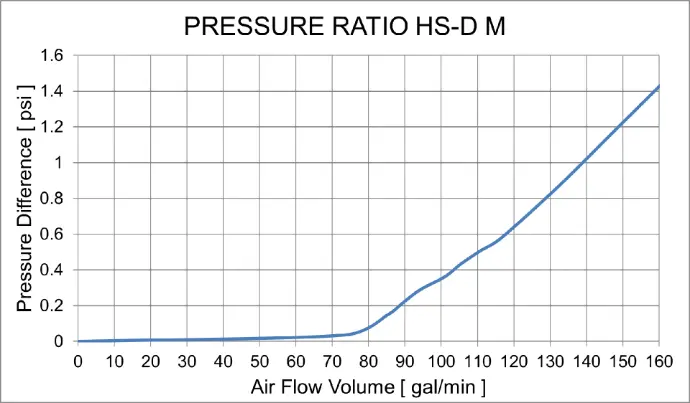

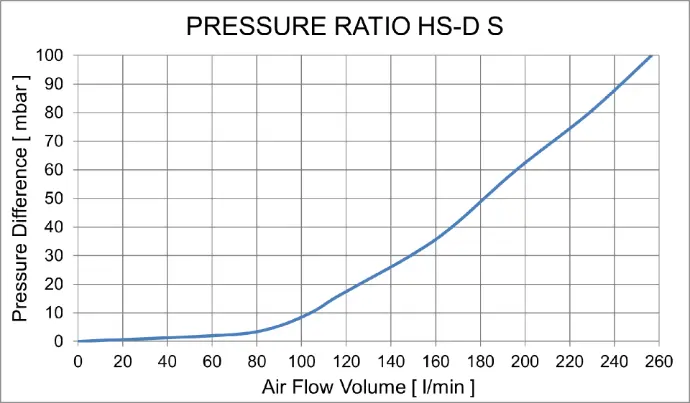

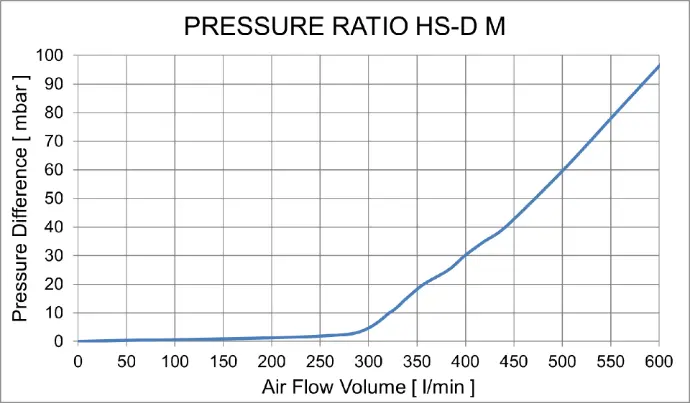

Pressure ratios.
